EazyDraw Graphing Graphic Inspection Details |

The Technical Tool palette has several elements useful for drawing graphing elements. Each of these may be inspected and managed numerically from the Graphic Details Inspector.

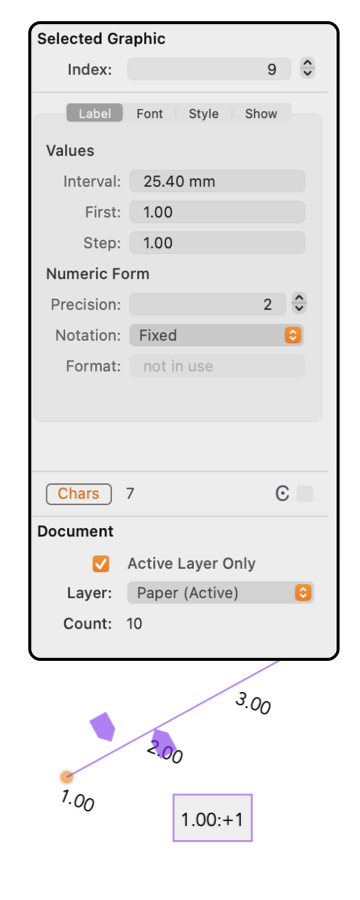

The example to the left shows the contents of the Graphic Details Inspector when Label Text is selected. To view this information use the Graphic Details menu command found on the Tools menu of the Main menu.

The details shown will apply to a Label Text entity or to a selected range of text if the Label Text is in Editing mode. This is explained on the Label Sequence manual page.

The Label Tab provides information and control for the numeric interval and decimal formatting of a Label Text Sequence.

The Text Font Tab view provides information and control of the font, typeface, point size, kerning and angle of the label text.

The Text Style Tab view provides information and control of the text style, color and shadow of the text.

The Show Tab view defines the position of the label sequence on the drawing and the static prefix and suffix text shown in each label of the sequence.

The Tick Pattern parameters manage all aspects of a tick pattern sequence.

A separate set of parameters are provided to control Grid Graphics including position, spacing and interval. These grids are independent drawn graphics and are not related to the primary grid reference aspects of a drawing window. These parameters are for a normal rectangular grid.

A separate set of parameters are provided to control Hex Grids including position, spacing and interval.

Lengths on these graphic details views are shown in the Units (cm, inches, points, ...) defined for the document on the Scale parameter panel. Each coordinate is the distance from the origin which is defined on the Scale panel and may be adjusted by dragging a Ruler .
