EazyDraw Arrow Color Circled
Related Information
Arrow Palette
Arrow Shape
Arrow Location
Arrow Stroke
Color Well
Palette Aids
Defaults
|

EazyDraw for macOS palette controls Arrow Color

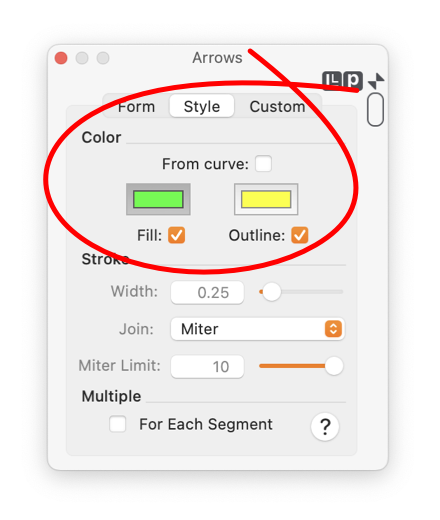

Lines, curves, and outlines (borders) may be drawn with Arrows at ends and vertices. The parameters that control the color and drawing style of the arrows are found on the Arrows Panel. To show this panel select "Arrows" from the Tools Menu which is on the Main Menu. To work with these parameters select the "Style" Tab as shown in the example.

In order to change the "Color of an Arrow" of a graphic(s) it must be the selected graphic in the top window of EazyDraw. If no graphic is selected the Arrow parameters on the panel represents the arrow format that will be used when creating new graphics. Follow the Target Graphic(s) link for more information on this topic.

Either the Start or End arrow location check box must be selected to enable the Arrow Color parameters. If the parameters are disabled it is usually because the graphic selected does not have an arrow at either the start or end.

The colors for arrows may be those of the line, path or curve to which the arrow is attached. Or the colors may be defined independently using the parameters shown circled. The "From Curve" check-box determine which method is used.

If the "From Curve" check-box is not checked the two color wells and checkboxes for "Fill" and "Outline" are enabled and is used to specify the arrow’s "Style". The Fill color well and check-box apply to the interior of the arrow. The Outline color well and check box apply to the outline or border of the arrow. Follow the links if you need more detailed information on the "Stroke" and "Fill" concepts.

EazyDraw Help Pages example

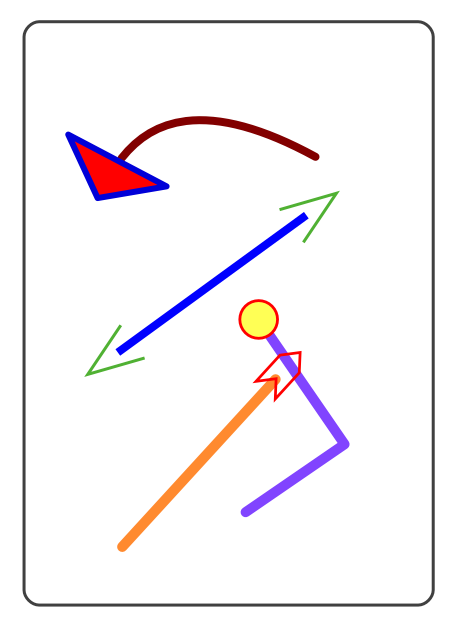

The example to the right shows just a few of the designs possible with independent control of the arrow’s color, outline and fill.

The drawing style parameters follow the model of the Fill and Outline parameters that control the appearance of all graphics in EazyDraw. To learn more about their use follow the link Styles Panel to the documentation on fill, borders, lines and outlines.
