In order to see the changes made to the rulers they need to be shown in the top window of EazyDraw. Showing rulers is a drawing specific selection, some drawings may have rulers showing and others may not. Changes to these parameters will have affect for the top window only.
|

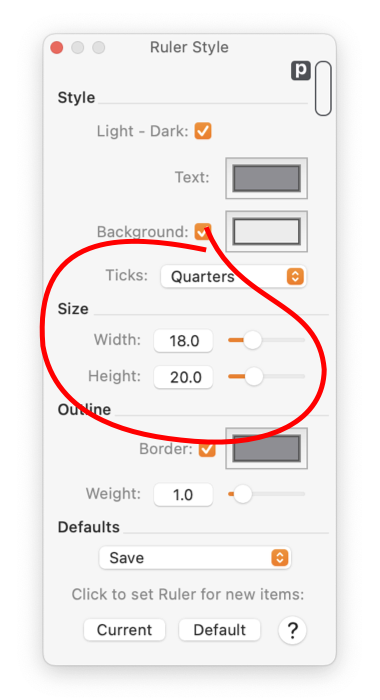

The width of the vertical (Y-axis) ruler is determined by the entry shown circled. You can enter a numerical value or use the slider to set the desired width.
The height of the horizontal (X-axis) ruler is determined by the entry shown circled. You can enter a numerical value or use the slider to set the desired width.
The width and height lengths are measured in
Fine Scale Units
(inches, mm, or points) as shown by the
Units Button
found at the upper right hand corner of the palette.
|
