EazyDraw for macOS palette controls The color and weight (line widths) of rulers may be selected with these parameters. They are found on the Ruler Style Panel. To show this panel select "Ruler Style" from the Tools Menu which is on the Main Menu.

In order to see the changes made to the rulers they need to be shown in the top window of EazyDraw. Showing rulers is a drawing specific selection, some drawings may have rulers showing and others may not. Changes to these parameters will have affect for the top window only.

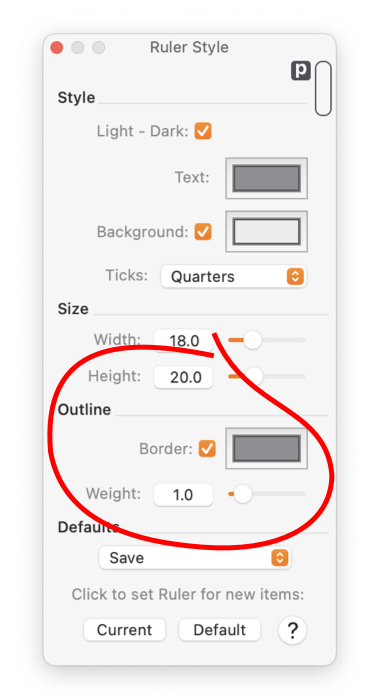

The color of the border and tick marks of the rulers may be set with the color well shown circled.

The thickness of the border and tick mark lines are set with the numeric text box shown circled. You can enter a numerical value or use the slider to set the desired width.

The weight is shown in the Units (cm, inches, points, ...) defined for the document on the Scale parameter panel

The Colors and Size of rulers are also accessed with this panel.

There is a stepper control in the upper left corner where the rulers meet. Use this stepper to select the interval for the tick marks. The stepper sequences through the various tick interval options, like quarters, tenths, or fifths. Sequence through to find the sequence that best suits your needs.
