Rounded Rectangle

Rounded Rectangles are defined by their top left corner, length and width of the sides, and a radius that applies to all 4 corners.

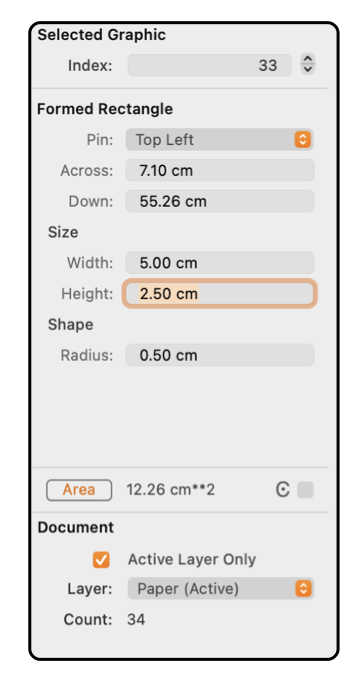

The example to the left shows the contents of the Graphic Details Inspector when a Rounded Rectangle is selected. To view this information use the Graphic Details menu command found on the Tools menu of the Main menu.

To show the information for a Rounded Rectangle item on a drawing, the Inspector must be open and the Rounded Rectangle must be selected. The Rounded Rectangle of interest must be the only item selected.

The coordinates for the virtual top left corner of the Rounded Rectangle are shown in the numeric text boxes labeled "X" and "Y". The location of the Rectangle may be checked in this manner or the Rectangle may be moved by entering a new value for either coordinate.

The length (X dimension) and height (Y dimension) of the sides of the Rectangle are shown in the numeric text boxes. The Rectangle's size may be checked in this manner or changed by entering the new value in the text box. The lengths are the full length of the graphic, the actual length of the side is obtained by subtracting twice the corner radius.

The radius of the chamfer applied to the corners is defined in the text box under the heading "Shape".

These lengths are shown in the Units (cm, inches, points, ...) defined for the document on the Scale parameter panel. Each coordinate is the distance from the origin which is defined on the Scale panel and may be adjusted by dragging a Ruler .
