Repeat Sequence Brush

The Repeat Sequence Brush Method repeats the Brush Stroke Path a defined number of times at a specified interval along the master path. When the defined number of repetitious are complete, if there is length remaining on the master path, the sequence begins again. The repetitions continue along the full length of the master path.

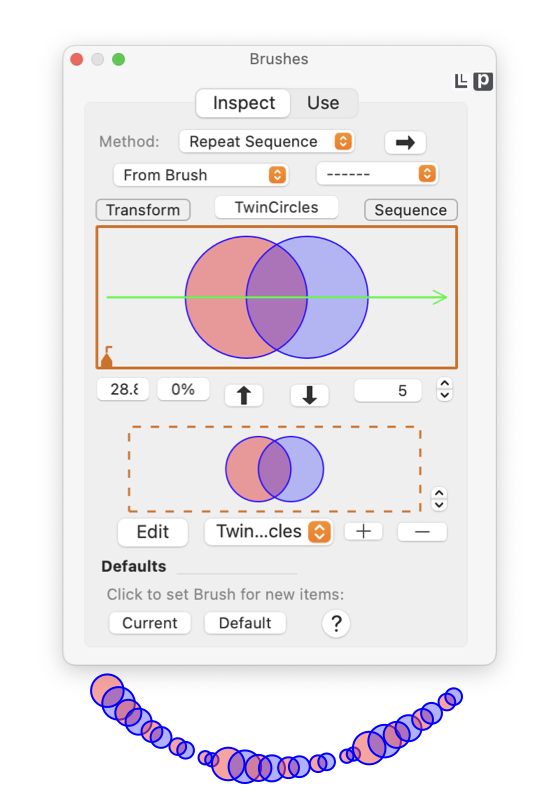

Exact configuration of the Brush palette shown here to the left will vary with choice of Brush Method (the top popup menu). Your Brush Palette may look different if you are inspecting a different kind of Brush.

A Repeat Sequence Brush is the same as a Sequence Brush unless there is a Sequence Transform is in use. A Sequence transform is defined with button above the brush design preview area, on the right.

A Repeat Sequence Brush is the same as a Reflect Sequence Brush except the repetitions are not mirrored. The sequence transform resets and begins anew with each repetition.

These elements are found on the Inspect tab of the Brushes palette which is accessed from the Tools main menu, about one third down from the top. These brush design elements (surrounding the brush preview area) appear when working with a Repeat Sequence brush.

The Repeat Sequence Brush Method has a specified interval and a specified count. The interval is just below the inspection view, on the left. The count is just below the inspection view, on the right. Since both an interval and a count are specified the sequence has a defined length (interval times the count). This length may be different than the length of the master path. If the master path is shorter, the first portion of the sequence appears on the master path. If the master path is longer than the sequence's defined length the sequence completes then repeats.

There is control for the starting phase, or initial portion of an the interval. This has both numeric and interactive input. the brownish control handle near the left edge of the design view provides interactive control for the phase. The phase is available numerically for inspection and input just to the right of the interval numeric value. The phase value is defined as a percentage of the basic interval (not the full length of the sequence).

Both Transform and Sequence Transform apply for this brush method. These are described on a separate Help page.

The term sequence on the Sequence Transform button (above the inspection view on the right) has a slightly different meaning than the sequence term for the name of the brush method. A sequence transform applies to other repeating brush methods, not just to this particular Sequence Method.

Sequence and repeat brushes are not stretched, their size is the size "as drawn". The drawn size relates to the originating size when the Brush Stroke Path was designed and first drawn on an EazyDraw drawing, before introduction to the Brush Scratch pad. A brush may be resized rather quickly: select the brush, click the "down" arrow to send the Brush Stroke Path to the scratch area, click the "Edit" button and the brush path will appear on the drawing. Perform the size or other editing changes and repeat. It seems a large "logical" step to edit a brush stroke, but it really is only two mouse clicks to edit and two more to send it back as a brush.

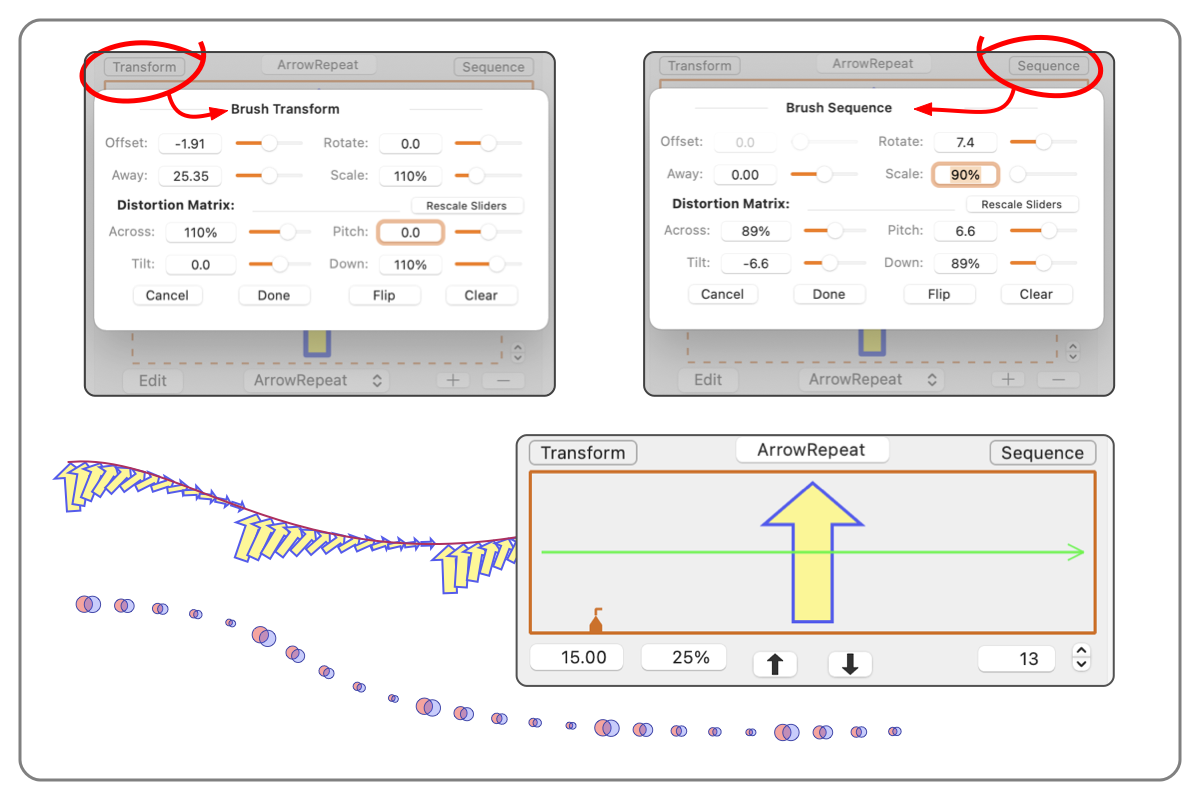

As you may see with the examples shown to the left and below, this method works well with a Sequence transform. A Sequence transform may step the size and / or orient or "roll" the repeating brush along the master path.
