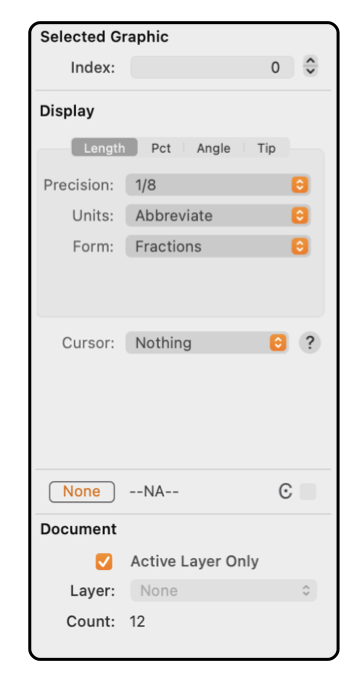

The precision value defines the number of decimal digits shown, after the decimal point. If fractions are in use, decimal precision is used to define the precision of fractional intervals. For example, a precision of 2 rounds to the nearest 1/4 while a precision of 4 rounds to the nearest 1/16th.

The Units popup specifies the format of the suffix of a length value. You may choose None, Units, Abbreviation, or Punctuation. Punctuation applies only to feet,inches, and degrees.

The Form popup specifies how numbers should be displayed, Decimal, Fraction, Feet/Inches or Alternate. Alternate provides for decimal representation showing the primary units as specified on the Scale palette for the whole drawing and the metric/inches value in parenthesis.

The Form popup has a submenu at the bottom which is used to specify the form for the area measurements found at the bottom of the Graphic Details Inspector. When one graphic is selected, and that graphic has a defined area, this area is reported in the Area text field below all other reported details for the graphic. This area value is not editable, it only reports the value. The precision and units settings follow those defined for lengths on the Graphic Details Inspector.

The Width numeric text field defines the width provided for the numeric text fields used to display lengths on the Graphic Details Inspector. Interactive control for this parameter is provided directly above the Length tab view, adjust the slider to provided the desired space to display and input length values with the chosen format. This value is always shown and entered in Points, there are precisely 72 points to an inch.
