Graphic Index

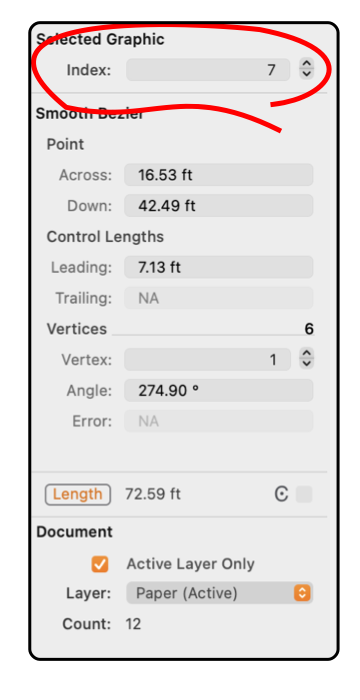

Each individual graphic on a drawing has a specific position in the Drawing Order. The terms "back" and "front" are used to describe a graphic's relative position in the drawing order. The back most item will have an index of 0, meaning it is drawn first which also means it will be eclipsed by any other overlapping graphic. The drawing order index of the selected graphic is shown at the top of the Graphic Details Inspector.

You may use the stepper to sequence through the drawing order, this will change the selected graphic to the next (or previous) graphic in the drawing order. If an index is entered, the selected graphic will be changed. The actual drawing order index of the selected graphic is NOT changed. To change an items position in the drawing order use the Send Menu commands.

It is important to understand the concept of Fill when working with drawing order and eclipsing graphics. This is especially true if the fill color is the same as the background color. A graphic with white fill on a white background will look the same as a graphic with no fill. The effects of drawing order on these two graphics will be quite different.
