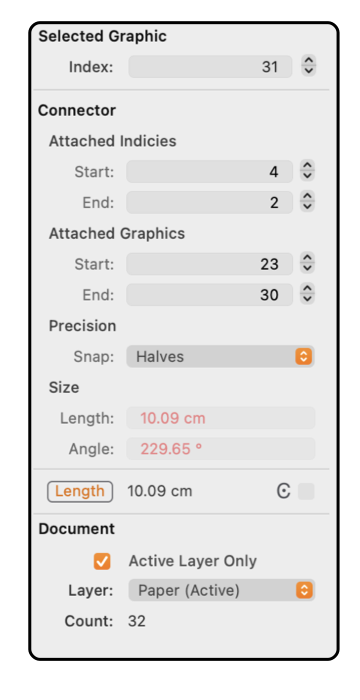

Connector Connectors are defined by the two graphics that they connect, and two attach indices "along" the outline or path of these graphics. The example to the left shows the contents of the Graphic Details Inspector when a Connector is selected. To view this information use the Graphic Details menu command found on the Tools menu of the Main menu. To show the information for a Connector item on a drawing, the Inspector must be open and the Connector must be selected. The Connector of interest must be the only item selected.
There is more information on this subject provided in the documentation of the Connector Creation Tool and the Connector Specification panel. The indices of the attach graphics are not the same as the Drawing Order. These indices are the basic index assigned when the graphic is created. They best used by visually checking the attached graphic. |
