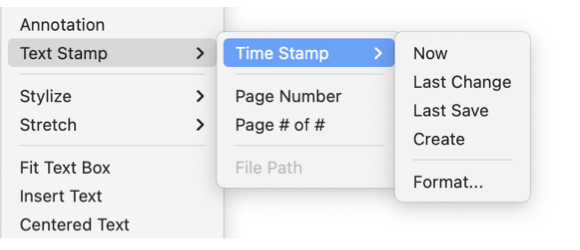

Page Stamps may be added to drawings using the menu commands shown above which are found on the Text Main Menu. There are 2 versions of page stamps available.
|
A Page Stamp is created by selecting the appropriate menu item. The new Page Stamp is created and initially placed in the middle of the screen. Use the
Arrow Tool
or
Hand Tool
to place the Page Stamp anywhere on the drawing. When the page stamp is moved to a different page, the number shown will change. The upper left corner of the Page Stamp's text box is the key point for determining the precise page number shown.
-
Page
-
The "Page" selection creates a text box with a page number like those shown in the example. The actual page number shown is automatically updated to reflect the page number of Page Stamp.
-
Page __ of __
-
This selection creates a text box with a page number like those shown in the example. The actual page number shown is automatically updated to reflect the Page Stamp's page number and the total number of pages in the document. This Page Stamp is dynamic, when ever the number of pages in a document is changed, all of the document's page stamps will change appropriately.
|
