Link Text Boxes

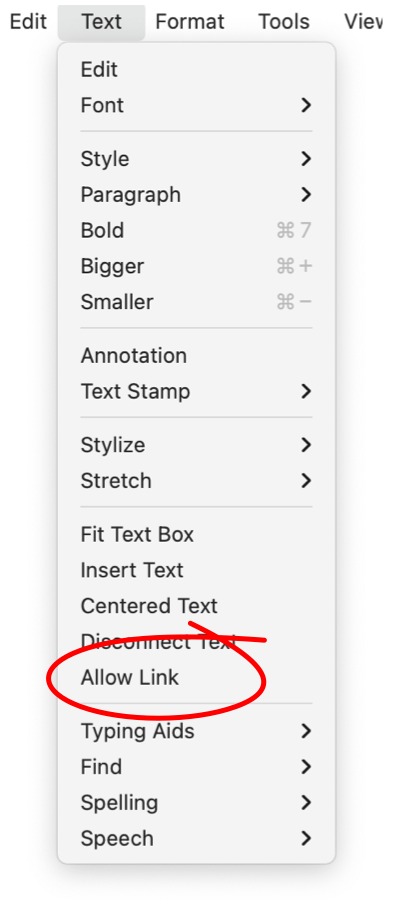

Text Links allow text to flow from one text box to another. Text Links are managed interactively on the drawing. This menu command enables or disables use of Text Links.

If a text box is selected, this menu item will enable or disable Text Links for the selected text box. If nothing is selected, this menu item will enable or disable Text Links for new text boxes added to the drawing.

If Text Links are not enabled for a text box, the green arrow box handles are not shown when the text box is selected.

To change the link status of all text boxes on a drawing, select all text boxes then use the menu command. Using this menu command with nothing selected will only change the link enabled status for new text boxes added to a drawing. To select all Text, click the Text box creation tool then do a "Select All" from the Edit menu.

Text Link Handles

A text box will have two text link handles when selected, if text links are enabled. The handles are a green color and have a small box with arrow shape.

Text boxes are linked by clicking and dragging from one of the two text link boxes. Drag the text link connecting line to another text box to link to an existing text box. Drag the text link connecting line to an open area of the drawing to add a new text box that is linked to/from the originating text box.

There is a direction component to the text link connecting line. Text flows "to" the upper left text link handle and "from" the lower right text link handle. The inner arrow shapes provide a visual clue for this direction of flow.

Text Link Connectors.

A Text Link is shown on the drawing with a light red pseudo connector path that joins two Text Link Handles. The path is only shown when one or both of the connected text boxes are selected. When the Text Boxes are not selected the path is not shown. The Text Link Connector cannot be selected directly, it may be selected for editing when "on screen" after one of the Text Boxes is selected.

Notice that a text link path is shown when an associated text box is selected. But in this state it is still not "selected". When actually selected the editing handles for the actual text link path are shown.

Removing Text Link

Text Links are removed by deleting the Text Link Path. Select one of the text boxes to show the Text Link Path. Next click and select the Text Link Path. Then press Delete key.

When a link is removed, text content is "frozen" in both associated text boxes. The text content is not pushed to one or the other of the text boxes. To push all the text out of one box and into the other, resize one of the text boxes before deleting the link.

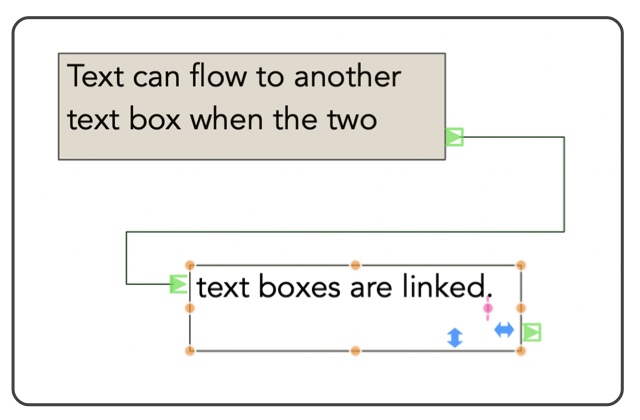

EazyDraw Help Pages example

Only one link "from" and one link "to" a text box is allowed. If a text box already is linked (from or to) another text box, the text box will not enable when creating a new text link path that would result in a duplication of links.

The actual positioning of the path is not relevant, it is just an indicator. The connecting path may be positioned and edited (inserting vertices, etc) as a Orthogonal Connector element. A new Text Link Path is drawn automatically and my require adjustment for proper aesthetic appearance. When a linked text box is moved, the text link path simply follows the moving text box, no automatic routing or insertion of vertices is provided.

Text Links may be drawn from either of the Text Link Handles. A link can be created "from" or "to" any text box. The text box must be enabled for Text Links, using the menu command, before it will accept a text link.

When a text box with an active link is selected, the text link path is shown and the "other" text box is highlighted to indicate the association. Note the highlighted state for the other text box is not a "selected" state. Changes of text parameters only apply to the selected text box, not the associated text box. To apply changes to both text boxes, both must be selected in the normal manner.

A text link is relatively weak with respect to the attributes of the associated text. For example changing typeface or font size of one text box will only change the text that is contained in the target text box; that being the text contents before the change. After the change the text may reflow and some of the changes might then appear in an associated linked text box. To make more global attribute changes to a group of linked text boxes, select all the text boxes explicitly before making the change.
