Text Bubbles

EazyDraw Help Pages example

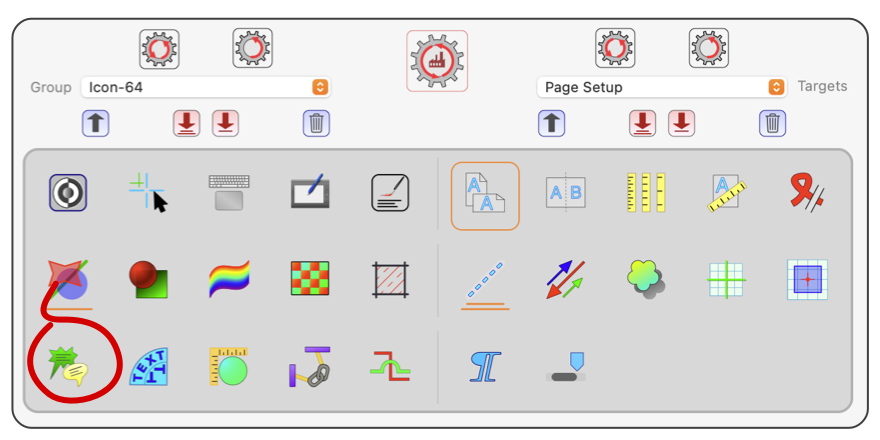

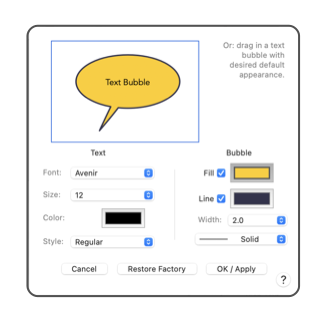

This panel is used to define the default settings for Text Bubbles. These are full featured text boxes decorated with an enclosing bubble shape and an indicator tip. They should be easily recognizable as the "speech bubbles" used in newspaper comic strips. On technical drawings they aere used as "Call-Outs" for adding special instructions or notes to drawings.

Since these graphics have a dual nature as they are a combination of text and a bezier graphic. This means the common default values as defined for text or a Bezier graphic are not sufficient to define the initial or default appearance for a text bubble. This panel is used to define the default initial appearance of text bubbles.

The text bubble tools are found on the Technical Tool Palette . The settings showing on this panel determine the initial appearance of a new text bubble when drawn with one of the four text bubble tools.

There are two ways to set these defaults. The parameter selections are one method to define default attributes, they manage the most commonly used parameters. The second method is to drag and drop a text bubble (or any other text or Bezier graphic) from a drawing to the panel; the parameters from the incoming graphic are applied as defaults. The sample bubble shown at the top of the panel will reflect all default parameters.

The parameters in the left column provide access to define font face, font size, color and style properties. The definitions and use are the same as available on the Graphic Details Inspector or main system font panel.

The parameters on the right apply to the Bezier graphic properties of the text bubble. Outline (stroke) and fill color, outline line width, outline dash or solid line style are the parameters presented for direct specification on this panel.

Of course there are numerous other parameters that can apply to both the text and Bezier graphic aspects of a text bubble. These may still be specified and defined for the default text bubble settings. These may be specified by dragging and dropping a text bubble from a normal EazyDraw drawing to the top area of this panel. All settings from the external text bubble are applied as defaults and shown with the example text bubble.

The buttons at the bottom are used to restore all settings to initial Factory defaults, cancel with no changes to defaults, or apply the changes and close the panel.

For example if is desired to have a particular color gradient or pattern for the text bubble background fill, design a text bubble on a normal drawing add the gradient. Then drag and drop the this text bubble to the top area of this panel. The gradient will then be applied for any new text bubble.

A drag and drop input graphic doesn't need to be a text bubble graphic. Any graphic will carry in the parameters that apply. For example a rectangle dropped on the panel will bring in Bezier graphic parameters, leaving all text aspects unaltered.
