The Number Creation Cursor is used for drawing shapes that may have different number sides. EazyDraw uses this method of creation for equilateral polygons, stars and all the shapes on the Stellate Tool Palette . The Toolbar buttons for these shapes are shown below. The Number Creation Cursor becomes active when one of these buttons is selected.

EazyDraw Equilateral Polygon Tool EazyDraw Star Tool EazyDraw Cross Star Tool

The mouse down click in this mode defines the center of the graphic to be created. Keep the mouse button down and drag a line that will define a radius and initial angle. The graphic is inscribed in the virtual circle defined by the drag operation.

The number of sides of the new graphic may be changed by typing a number while the mouse drag operation is in progress. You may change the number of sides several times, all number entries are accepted until the process is completed at the end of the drag operation.

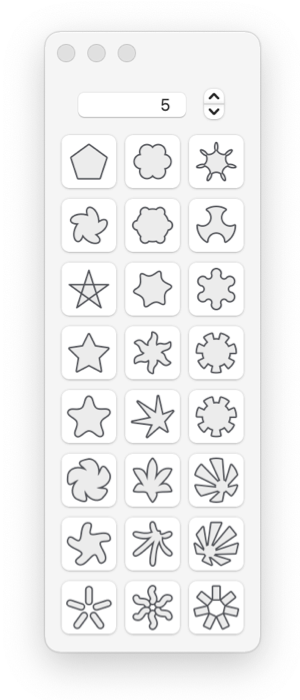

The number of sides is pre-set using the numeric field found at the top of the Stellate tool palette. The number of sides entered on the Stellate tool palette sets the initial value for all graphics found on the Stellate palette and their counterparts found on the main tool palette, (star, line star, and equilateral polygon).

EazyDraw Help Pages example

Don't be concerned if the shape is not placed and sized exactly as desired during the creation procedure. You may easily move and resize the curve after creation. Undo and redo always works but not during the creation operation, only after each creation procedure is complete. If you need to change the number of sides or set the defining radius use the Graphic Details Inspector to modify the parameters for the newly created shape.
